To train technicians to be able to install and maintain electronic equipment becomes important nowadays. A good technician should always follow state-of-the-art technology and rapid innovation of new products. Our system has been designed to satisfy the technical educational demand. In fact, IT-910 is adapted to theoretical and practical courses for studying power electronics and industrial electronics trainer.
Experiments:

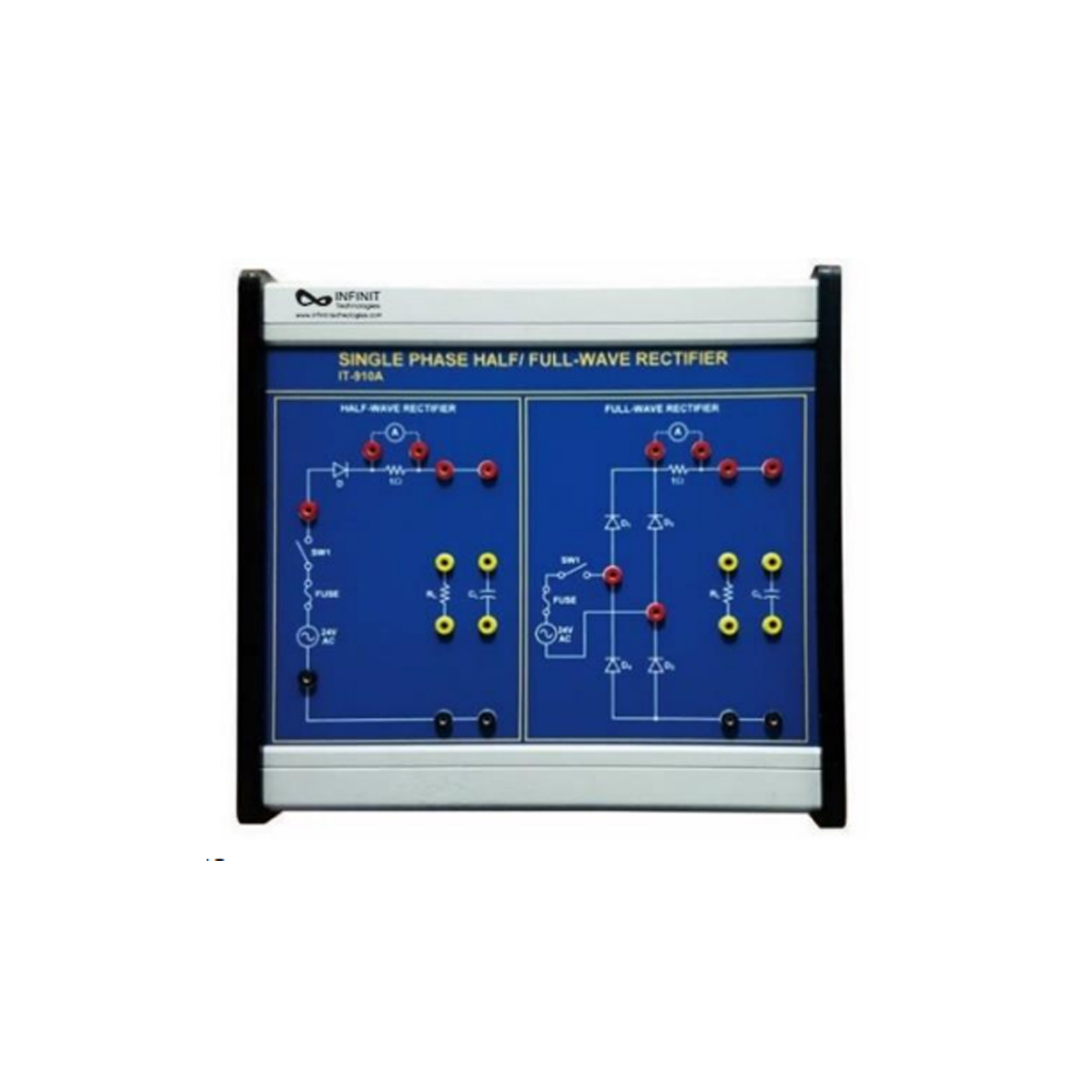

Single Phase Half, Full-Wave Rectifier IT-910A
- You may understand the principle and characteristic commutation circuit converting the AC to DC by using the diode characteristic
Technical Data
- Input Power: AC 220V
- Output Load: Resistance Load 10W 100ohm
- Diode: 600V 10A
- Input AC Wave, Output Voltage Wave
- Check Terminal: Measures output current and diode counter voltage.
